- Type 90 safety cabinet
- Tall cabinet with self-closing wing doors (door hinged on the left)
- With profile cylinder lock and lock position indicator
- Class 1 design – BATTERY STORE model: for passive storage of lithium-ion batteries
- Integrated adjustable feet to compensate for uneven floors
- Model line ION-LINE
- Model group ION-STORE-90
- Model IO90.195.060.K1.WDC
- Type tested according to EN 14470-1
- CE compliant
- External dimensions: W x D x H (mm) 599 x 615 x 1953
- Internal dimensions: W x D x H (mm) 450 x 522 x 1647
Colour
- Body color anthracite gray (RAL 7016)
- with hinged doors in gentian blue (RAL 5010)
Interior With
- 6 x perforated shelves as storage levels, load capacity: 25 kg, sheet steel, powder-coated, RAL 7035 light grey
- 1 x floor pan, volume: 12 litres, sheet steel, powder-coated, RAL 7035 light grey
Technical Specification
| External dimensions W x D x H | 599x615x1953mm |
| Dimensions W x D x H inside | 450x522x1647mm |
| Net weight item configuration | 292kg |
| distributed load | 894 kg/m² |
| Maximum load | 600kg |
| Entry width transport base | 526mm |
| Entry height transport base | 90mm |
| Shelf load capacity | 25.00kg |
| Volume bottom tray | 22.00 liters |
| ecl@ss 10.0 | 40-06-01-90 |
| ecl@ss 11.0 | 40-06-01-90 |
| ecl@ss 5.1.4 | 21-10-04-07 |
| ecl@ss 9.1 | 40-06-01-90 |
| ecl@ss 8.1 | 40-06-01-90 |
Outstanding products with a special manufacturer’s guarantee Extended manufacturer’s guarantee of up to ten years in connection with the asecos PREMIUM tariff
Downloads

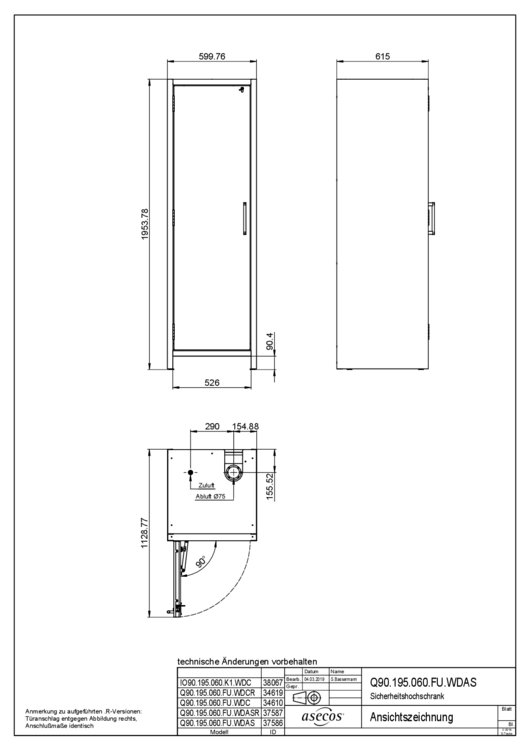

- Technical drawing
- Operating instructions ION LINE
- CE Declaration of Conformity
- Product data sheet
- 2D data (DWG)
Delivery
In the case of parcels or general cargo, delivery usually takes place within a week of the availability date . When shipping via a special forwarding agency (for safety cabinets and hazardous material workstations), the delivery takes place regularly after all the necessary delivery information (e.g. checklists) is available, on average within 10 working days after the availability date . You can find the exact delivery period (provision time + delivery time) in the detailed order confirmation or ask your asecos contact person as a guideline.
SCOPE OF SERVICE DELIVERY FREE POINT OF USE (LFV)
Your advantages:
- Delivery will be notified by asecos
- installation at the desired location in the building (possibility of being brought in must be clarified in advance
using a transport questionnaire to be filled out by the customer) - the alignment and initial commissioning of the cabinet by trained personnel
- taking away the packaging material
Not included are:
- – Use of a crane or similar
- – A spending time longer than 30 minutes
